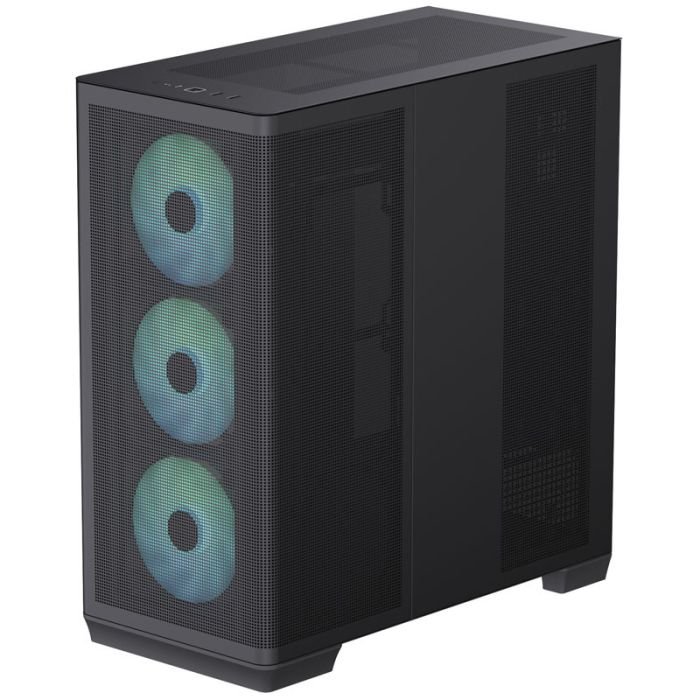

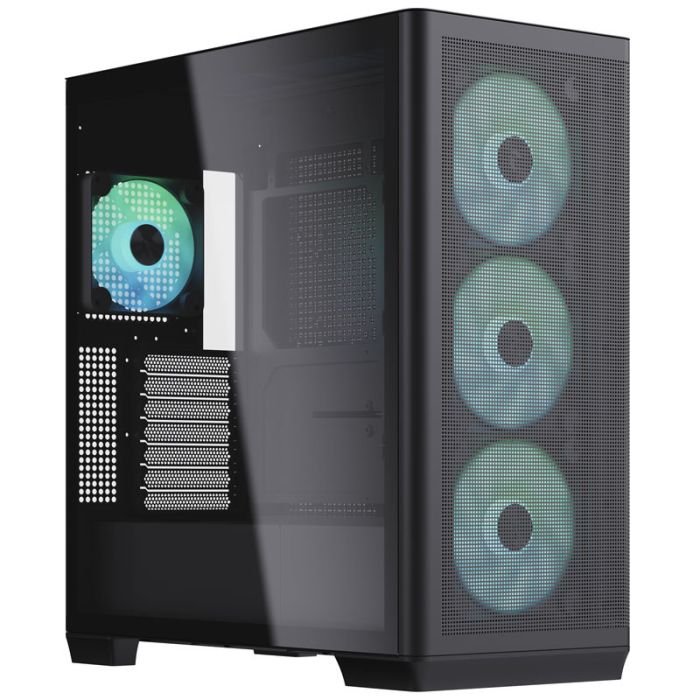

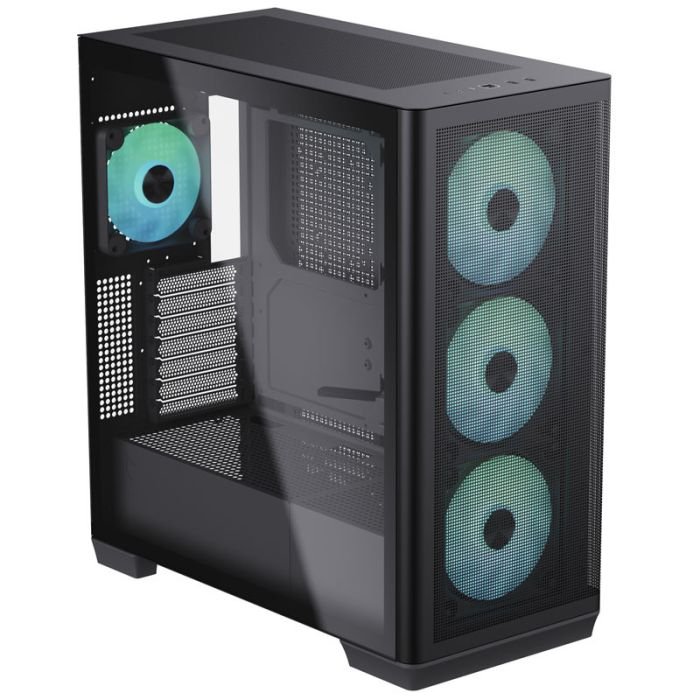

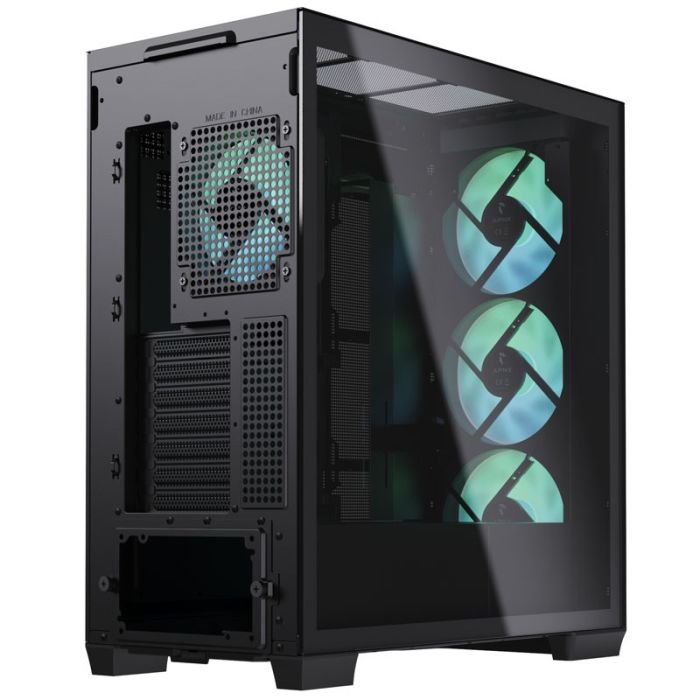

Model C1
Case Type Mid Tower
Colors Black, White, ChromaFlair
Body Material SGCC
Front Panel Material SECC
Steel Thickness
0.8mm
Motherboards ATX/Micro ATX/mini-ITX
Case Dimensions (Internal) 230 x 477 x 440 mm (W x H x D)
Case Dimensions (Overall) 230 x 502 x 464 mm (W x H x D)
3.5†Drive Bays 3 Max. (3 x 3.5â€/2.5″)
2.5†Drive Bays 3 Max. (3 x 2.5â€/3.5â€)
Expansion Slots 7
GPU Clearance Supports GPU up to 395mm
CPU Cooler Clearance Supports CPU cooler up to 166mm
Air Cooling Front: 120mm x 3 or 140mm x 3 (Max.)
(140mm ARGB Fan x 3 included)
Top: 120mm x 3 or 140mm x 2 (Max.)
Side: 120mm x 3 (Max.)
Rear: 120mm x 1 (Max.)
(120mm ARGB Fan x 1 included)
CPU: 120mm x 1 (Max.)
Liquid Cooling Top: 120/240/280/360mm Radiator (Optional)
Side: 120/240/360mm Radiator (Optional)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 2 | USB C x 1 | HD Audio & Mic.
Internal Cable Management Depth 40mm
Power Supply ATX PSU (Including cables, up to 270mm) (Optional)
