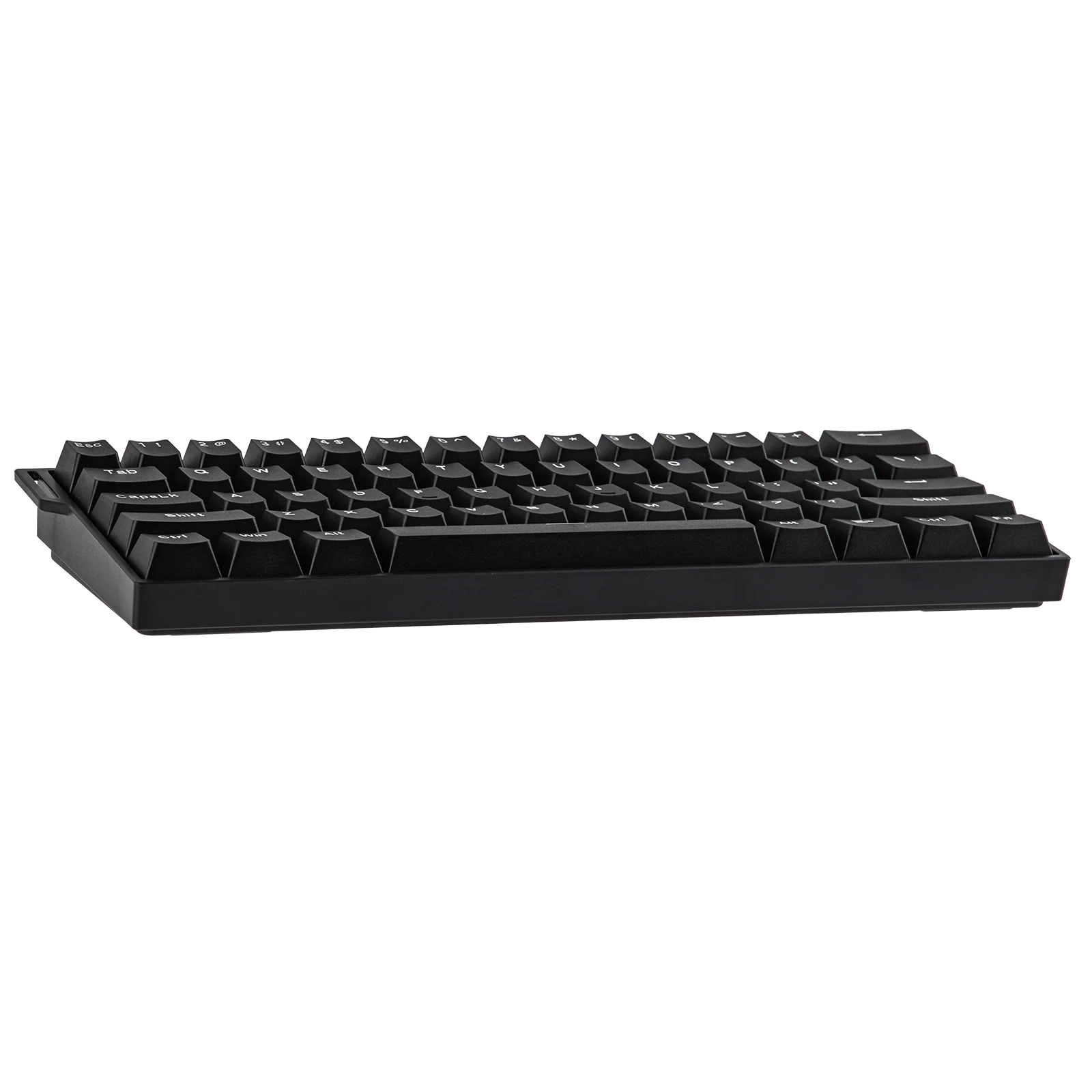

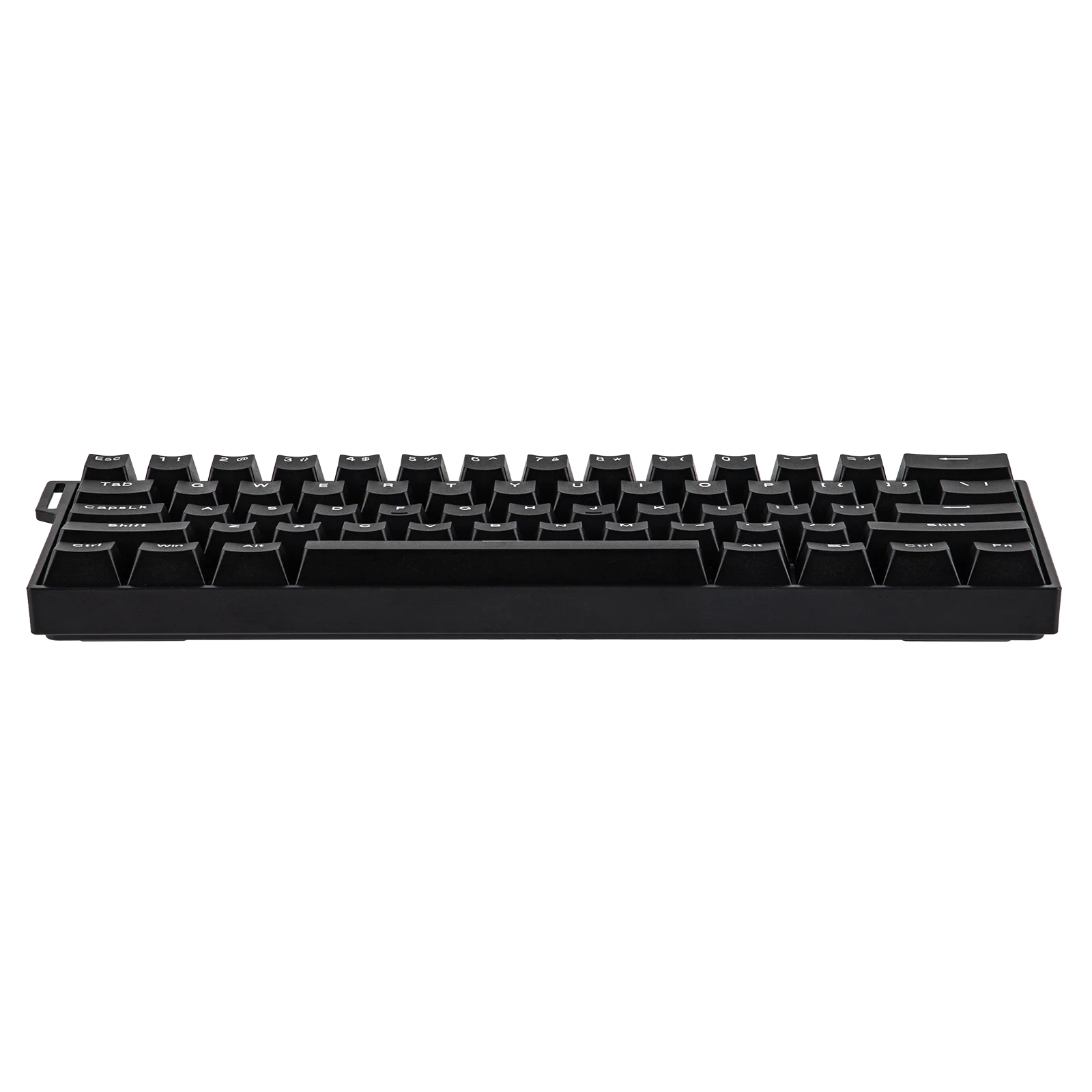

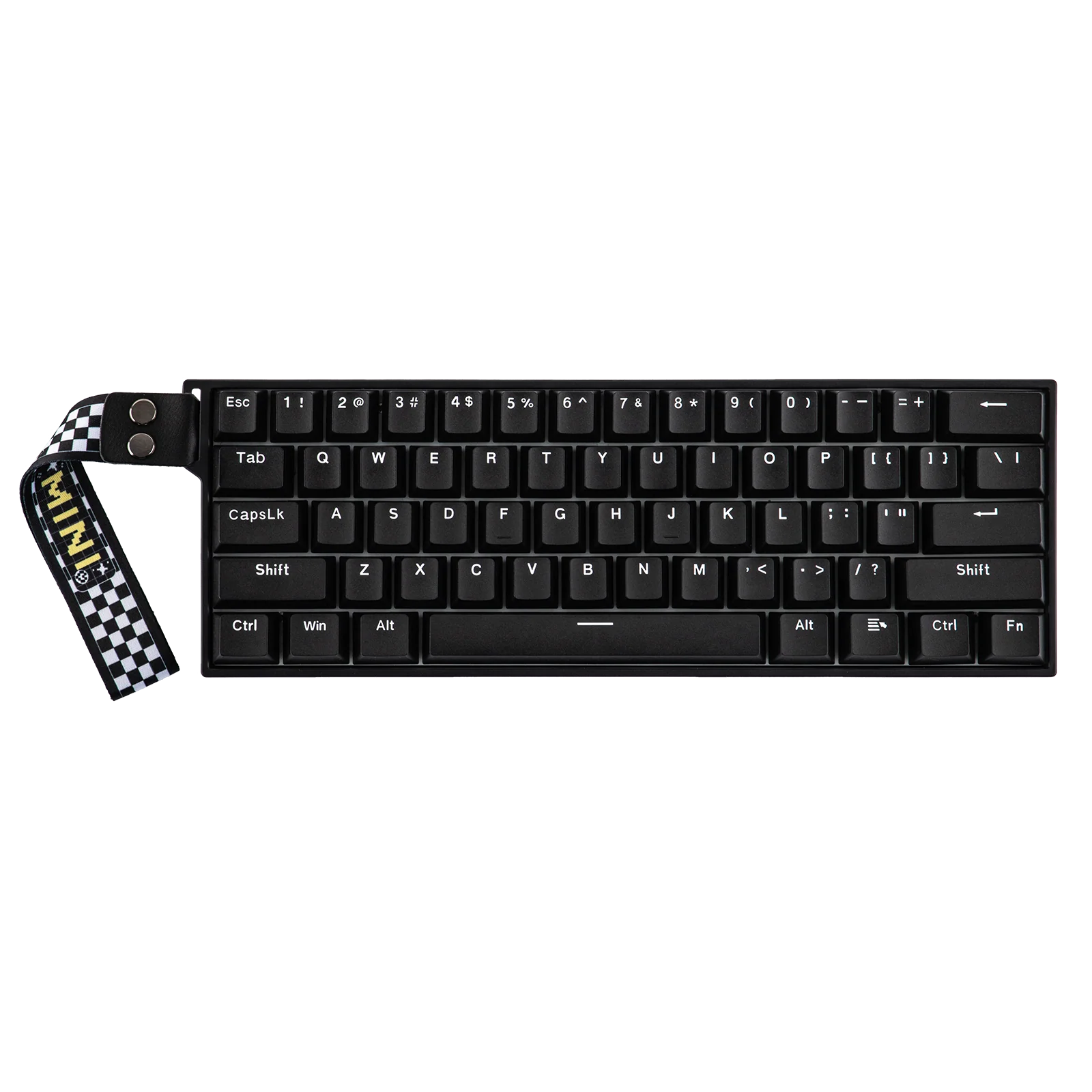

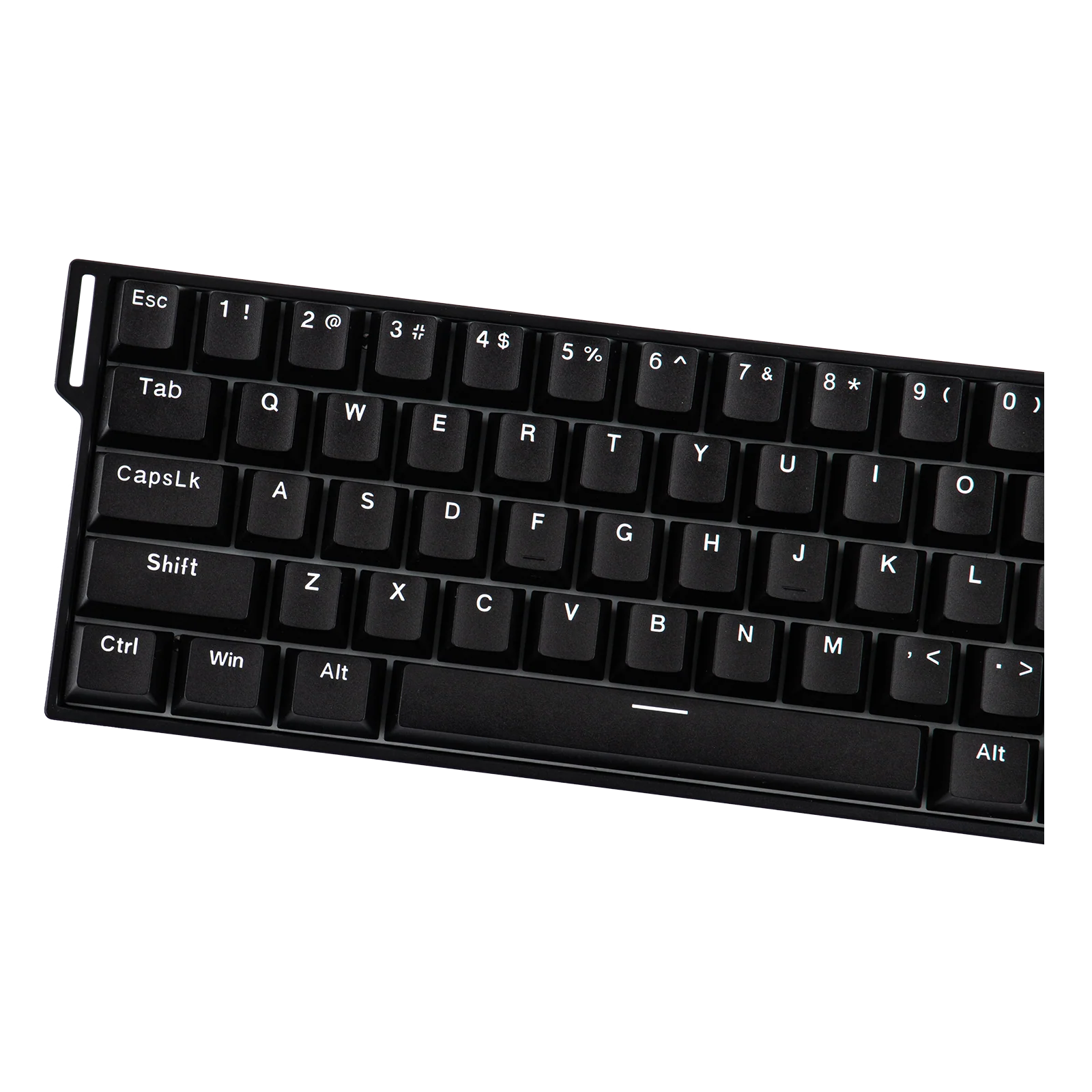

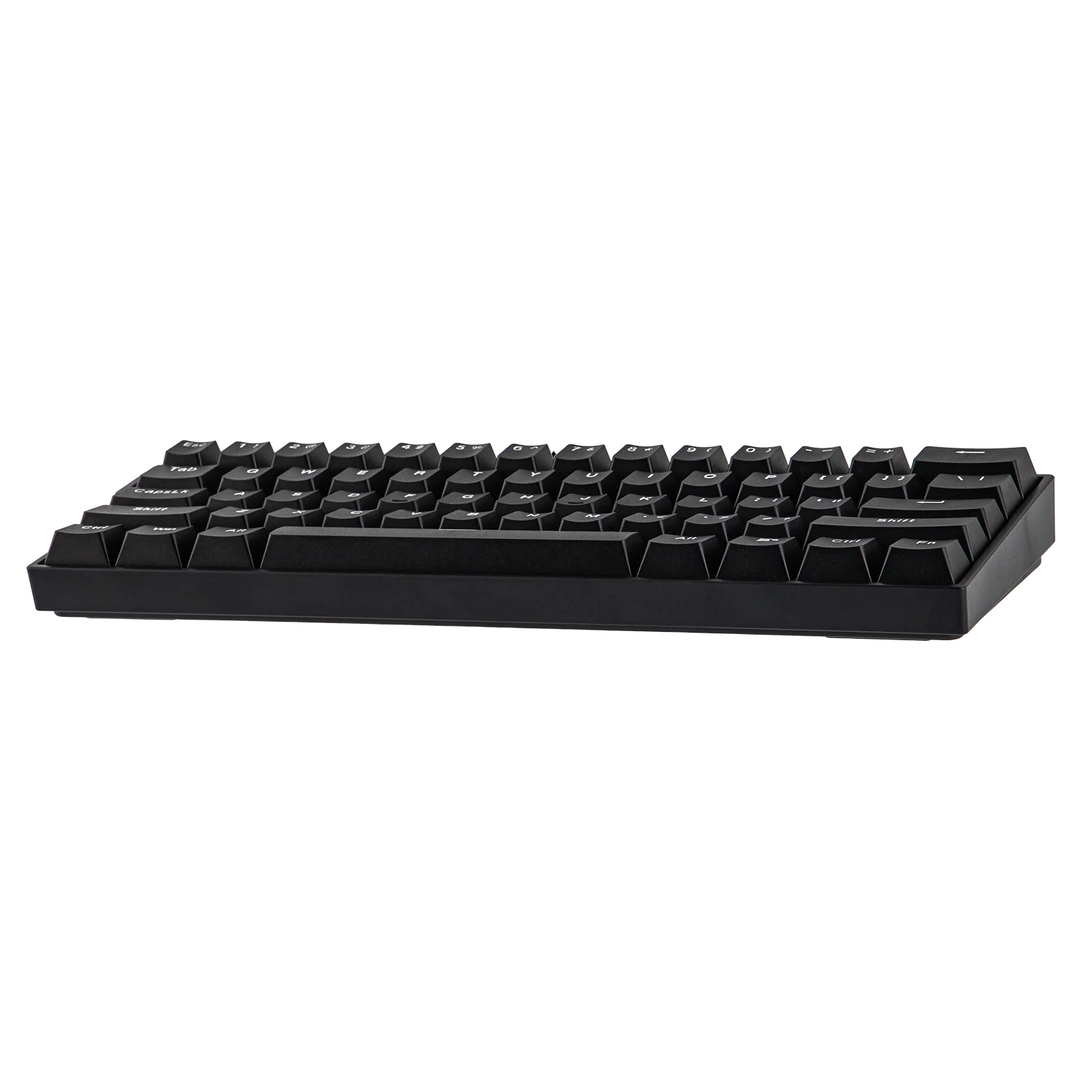

AULA MINI60 HE Standard Version Wireless Hall Effect Gaming Keyboard – Black 2179

Custom Magnetic Switch Specifications

Stormrise Magnetic Switch

• Switch Type: Magnetic, Pre-Lubed
• Trigger Force: 32 ± 5gf
• Bottom-Out Force: 50 ± 5gf
• Trigger Travel: Adjustable in 0.01mm increments
• Total Travel: 3.4 ± 0.1mm

Mistcloud Magnetic Switch

• Switch Type: Magnetic, Pre-Lubed
• Trigger Force: 33 ± 5gf
• Bottom-Out Force: 53 ± 5gf
• Trigger Point: Adjustable Travel
• Total Travel: 3.4 ± 0.1mm

Spiritcloud Magnetic Switch

• Switch Type: Magnetic, Pre-Lubed
• Initial Force: 28 ± 5gf
• Bottom-Out Force: 45 ± 5gf
• Trigger Travel: Adjustable in 0.01mm increments
• Total Travel: 3.4 ± 0.1mm

• AULA MINI60 HE — Technical Specifications

• Specification	Details
  Brand	AULA
  Model	AULA MINI 60 HE
  Keyboard Type	Wireless Hall Effect Gaming Keyboard
  Layout	60% Layout / US ANSI
  Number of Keys	61 Keys
  Switch Type	Magnetic Hall Effect Switch
  Hot-Swappable	Yes
  Compatible Switches	Most South-Facing Magnetic Switches
  Battery	3000mAh Standard / 4000mAh Max
  Connectivity	USB Wired / Bluetooth 5.0 / 2.4GHz Wireless
  Compatibility	Windows / macOS / Android
  Polling Rate – Standard	8000Hz USB / 1000Hz 2.4GHz / 125Hz Bluetooth
  Polling Rate – Max	8000Hz USB / 8000Hz 2.4GHz / 125Hz Bluetooth
  Rapid Trigger Sensitivity	Up to 0.01mm
  SOCD	Yes
  DKS	Yes
  Anti-Ghosting	Yes
  N-Key Rollover	Yes
  RGB – Standard	No Backlight
  RGB – Max	RGB Backlight

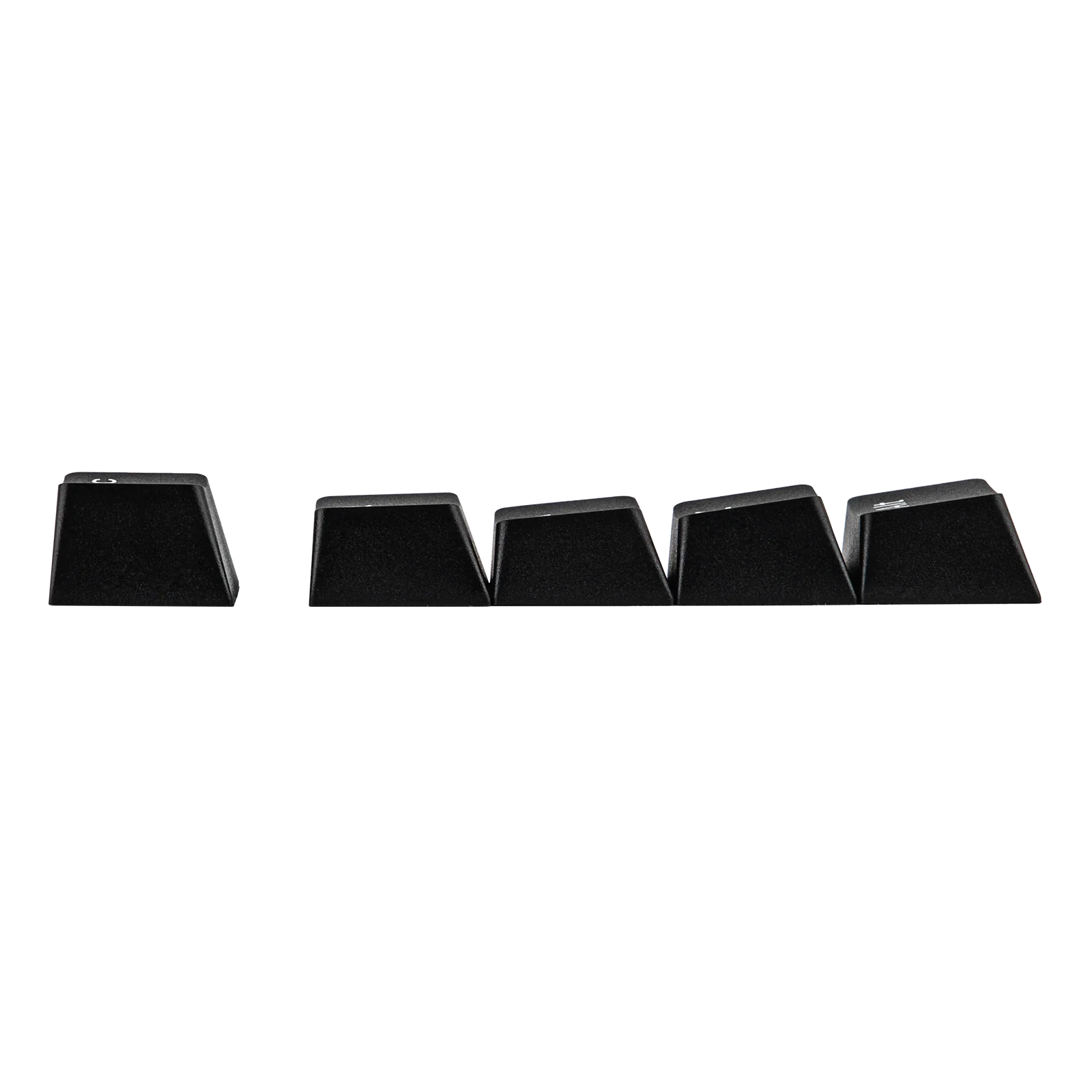

  Keycap Profile – Standard	OEM Profile
  Keycap Profile – Max	Cherry Profile
  Keycap Material	PBT Plastic
  Keycap Manufacturing	Double-Shot
  Case Material	ABS Plastic
  Plate Material	Aluminum Plate
  Stabilizers	Plate-Mounted Stabilizer
  Mounting Structure	Tray-Mounted

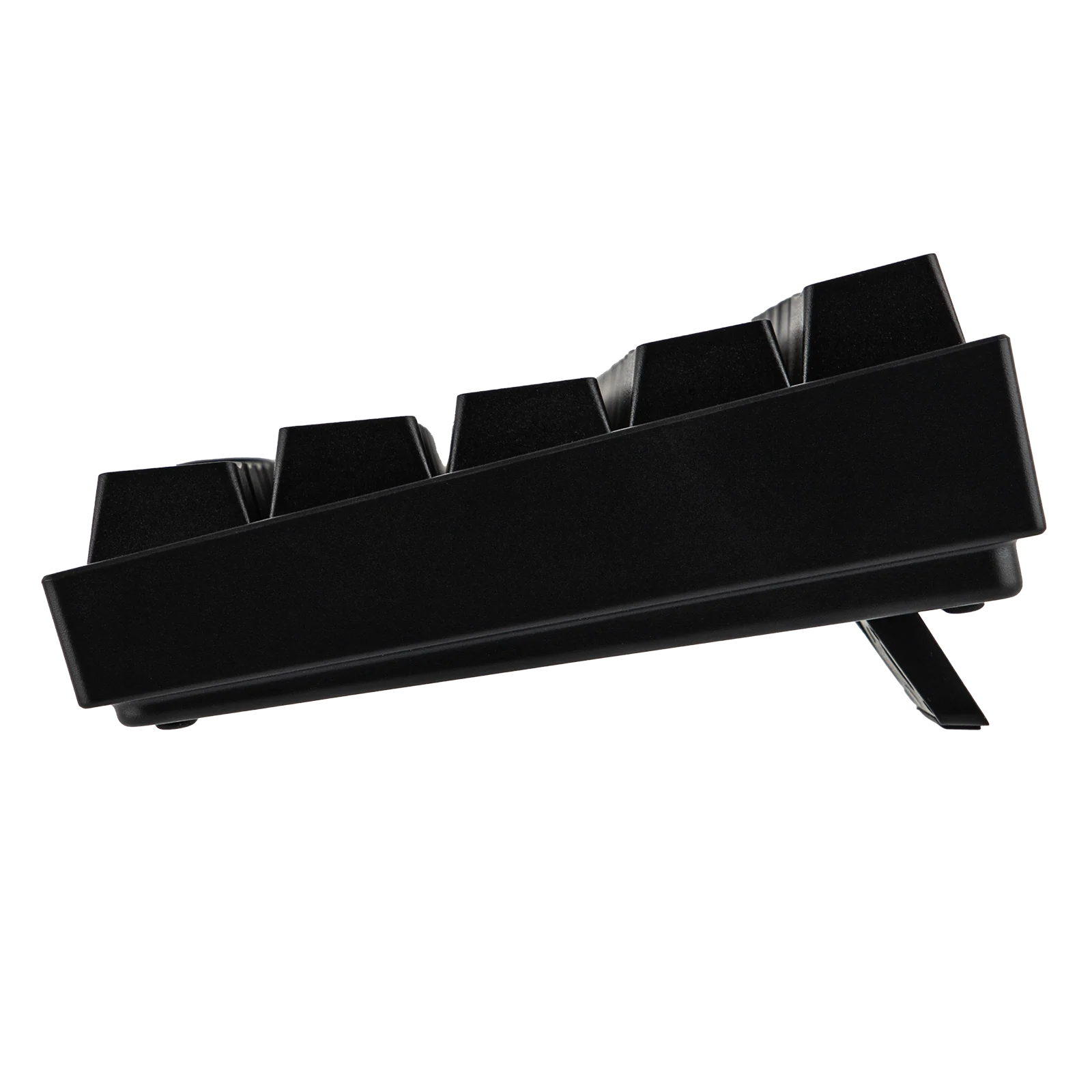

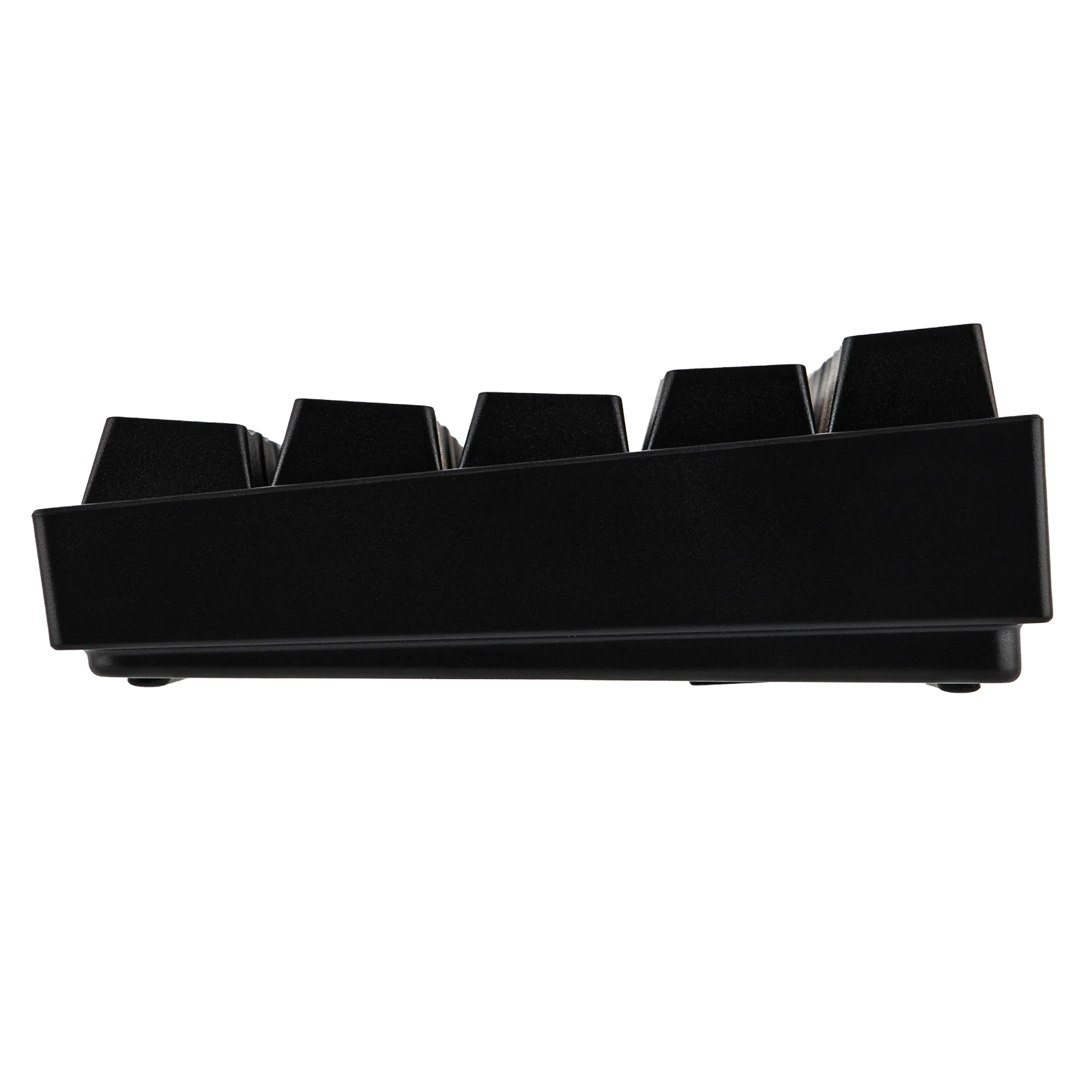

  Typing Angle	3 Adjustable Angles

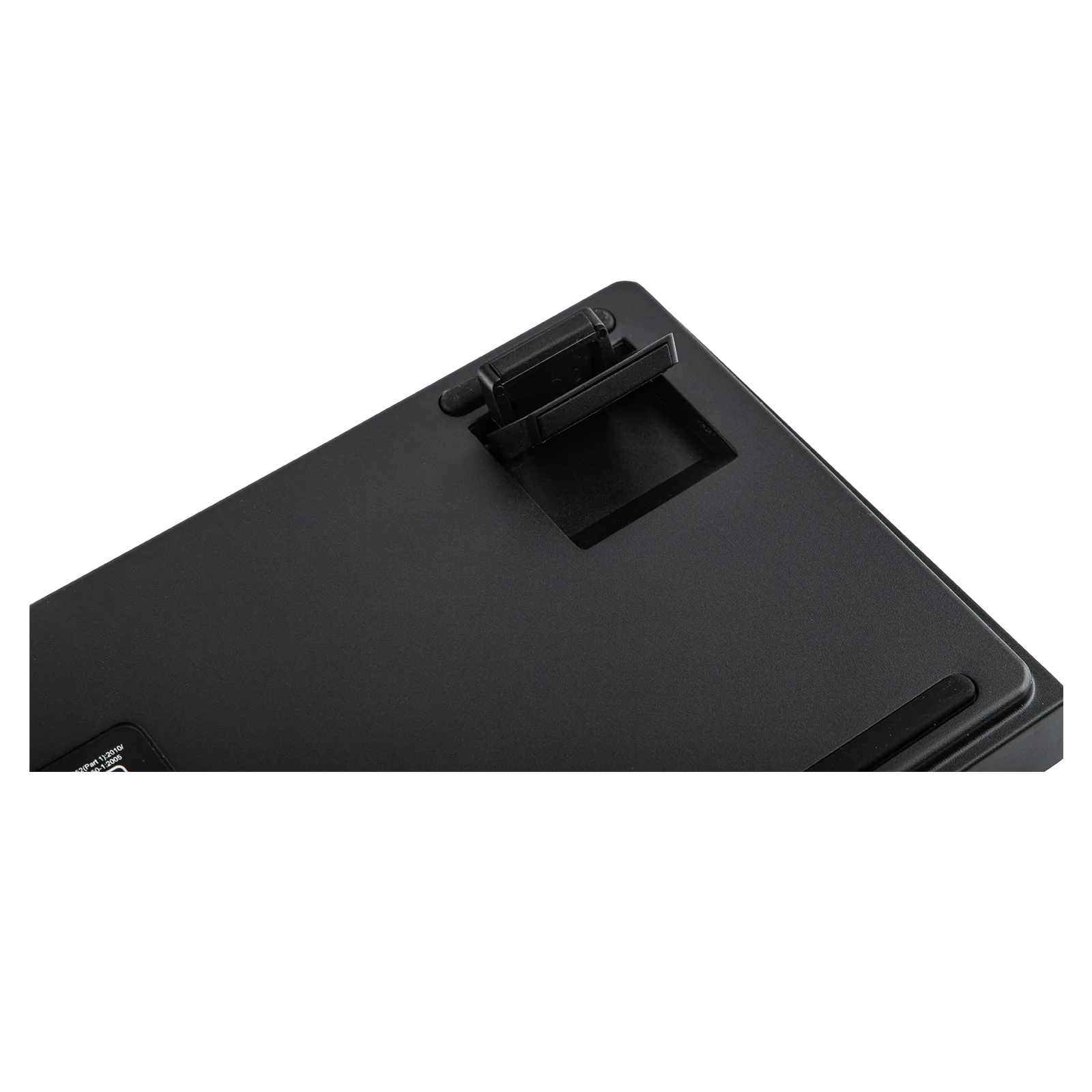

  Kickstand	2-Stage Adjustable
  Sound Dampening – Standard	Bottom Foam, PORON Foam, Switch Socket Foam
  Sound Dampening – Max	PORON Foam, Fiber Switch Pad, PET Sound Optimizing Pad, Switch Socket Foam, Silicone Pad
  Keyboard Dimensions	299.04 × 102.16 × 37.09mm
  Weight – Without Cable	689g
  Weight – With Cable	735g
  Front Height (Excl. Keycap)	17.52mm
  Case Structure	Tray-Mounted
  Wireless Modes	Bluetooth 5.0 / 2.4GHz
  Wired Mode	USB Cable
  Color	Black
  Version	Standard Version
  Special Features	Adjustable Actuation, Rapid Trigger, SOCD, DKS
  Hall Effect Compatibility	South-Facing Magnetic Switches

• Custom Switch Options

• Switch	Trigger Force	Bottom-Out Force	Adjustment	Total Travel
  Stormrise Magnetic	32 ± 5gf	50 ± 5gf	0.01mm	3.4 ± 0.1mm
  Mistcloud Magnetic	33 ± 5gf	53 ± 5gf	Adjustable	3.4 ± 0.1mm
  Spiritcloud Magnetic	28 ± 5gf	45 ± 5gf	0.01mm	3.4 ± 0.1mm
