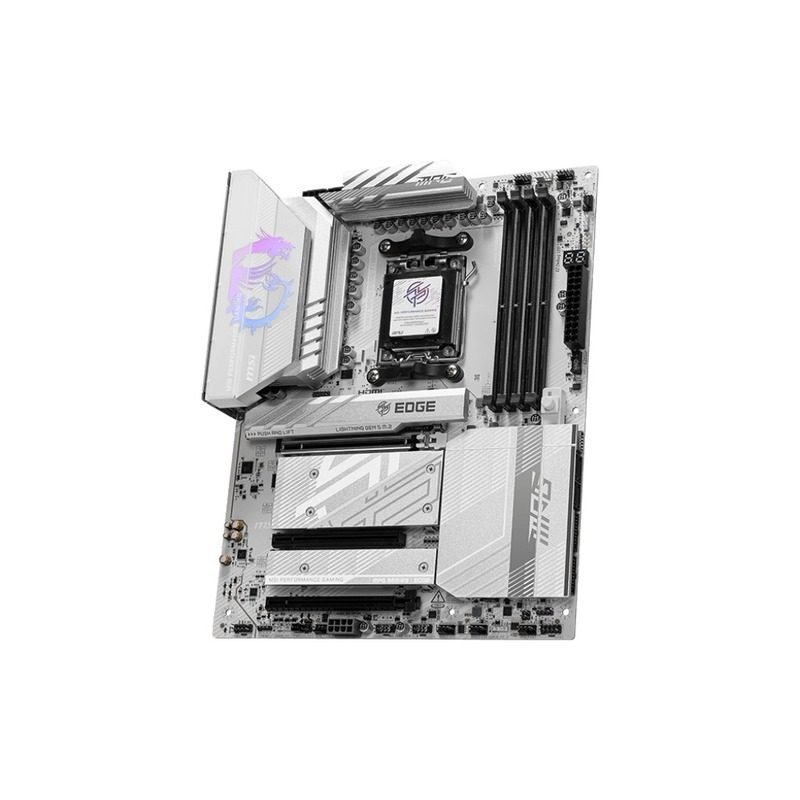

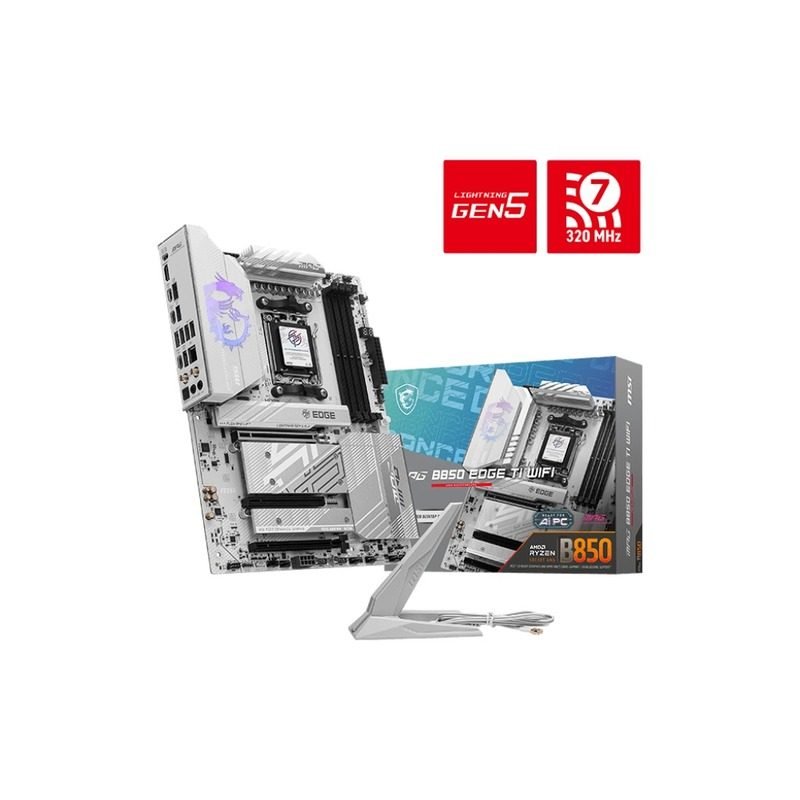

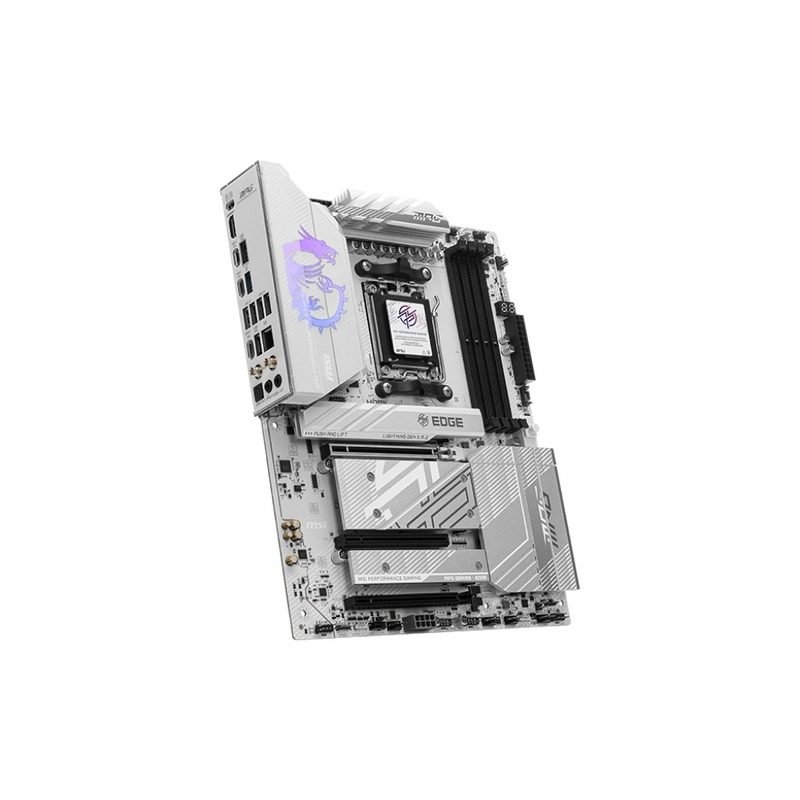

MSI MPG B850 EDGE TI WIFI/AM5/ATX

MSI MPG B850 EDGE TI WIFIFrozr GuardEZ DIYLightning Gen 5Audio Boost 5Chipset: AMD B850Dimension format: ATX (304.8x243.84mm)Processor support: AMD Ryzen™ 9000/8000/7000 seriesProcessor socket: AM5Memory:4x DDR5 UDIMM, maximum memory capacity 256 GBmemory support 8400-5600 (OC) MT/s/5600-4800 (JEDEC) MT/sRyzen™ 9000 series processors max. overclocking frequency:• 1DPC 1R speed up to 8400+ MT/s• 1DPC 2R speed up to 6400+ MT/s• 2DPC 1R speed up to 6400+ MT/s• 2DPC 2R speed up to 4800+ MT/sAMD POR Speed and JEDEC Speed supportmemory overclocking and AMD EXPO™ supportNon-ECC support, unbuffered memoryCUDIMM support, Clock Driver bypass mode onlydual-channel memory architectureGraphic outputs:(Graphics specifications may vary depending on the installed CPU.)1x HDMI™ 2.1 with FRL port, maximum resolution 8K 60HzSound card: Realtek® ALC4080 codec, 7.1-channel audio, supports playback up to 32bit/384 kHz (on the front panel)Ethernet: Realtek® 8126VB 5G LANWLAN + Bluetooth: Wi-Fi 7 + Bluetooth® 5.4, MLO, 4KQAM (wireless module pre-installed in M.2 Key-E slot)Expansion slots: 3x PCI-E x16:PCI_E1 Gen PCIe 5.0 x16PCI_E2 Gen PCIe 3.0 x1PCI_E3 Gen PCIe 4.0 x4PCI_E1:- PCIe 5.0 x16 support (for Ryzen™ 9000/7000 processors)- PCIe 4.0 x8 support (for Ryzen™ 8700/8600/8400 processors)- PCIe 4.0 x4 support (for Ryzen™ 8500/8300 processors)Storage space:supports a total of 4 M.2 slots and 4 SATA 6Gb/s portsM.2_1 (CPU) supports up to PCIe 5.0 x4, supporting 22110/2280 devicesM.2_2 (CPU) supports up to PCIe 5.0 x4, supporting 2280/2260 devicesM.2_3 (chipset) supports up to PCIe 4.0 x2, supporting 2280/2260 devicesM.2_4 (chipset) supports up to PCIe 4.0 x4, supporting 2280/2260 devices4x SATA 6Gb/s portsRAID controller: RAID 0/1/10 support for M.2 NVMe storage devicesUSB:Rear USB (10 ports total)3x USB 3.2 Gen 2 10Gb/s (type C)2x USB 3.2 Gen 2 10Gb/s (type A) red1x USB 3.2 Gen 1 5Gb/s (type A)4x USB 2.0Front USB (9 ports total)1x USB 20Gb/s (Type C)4x USB 5Gb/s (type A)4x USB 2.0Rear panel ports:3x USB 3.2 Gen 2 10Gb/s (type C)2x USB 3.2 Gen 2 10Gb/s (type A) red1x USB 3.2 Gen 1 5Gb/s (type A)4x USB 2.01x HDMI™1x RJ-45 5G LAN1x Wi-Fi/Bluetooth2x audio connector1x S/PDIF out1x Flash BIOS button1x Clear CMOS button
