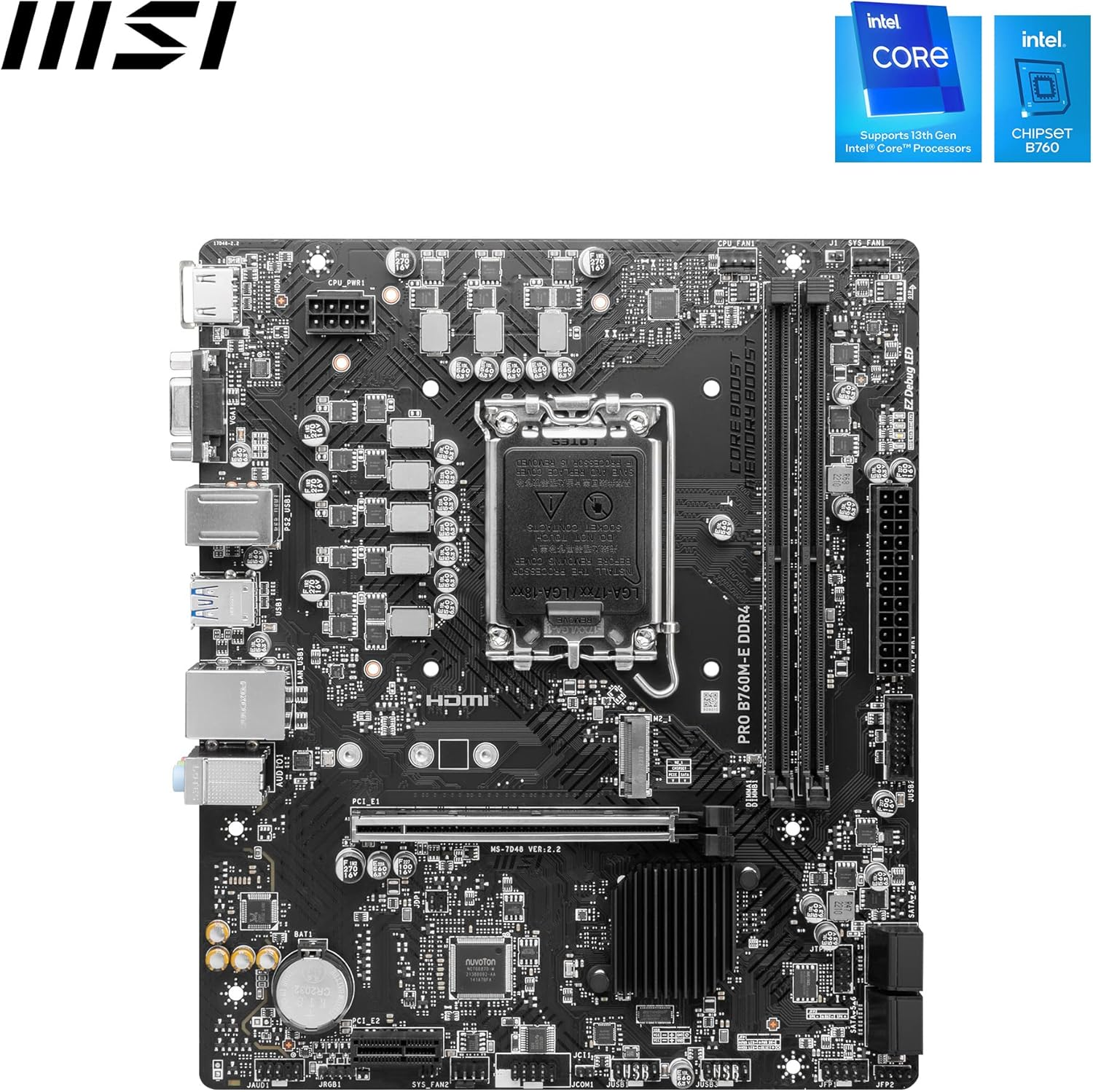

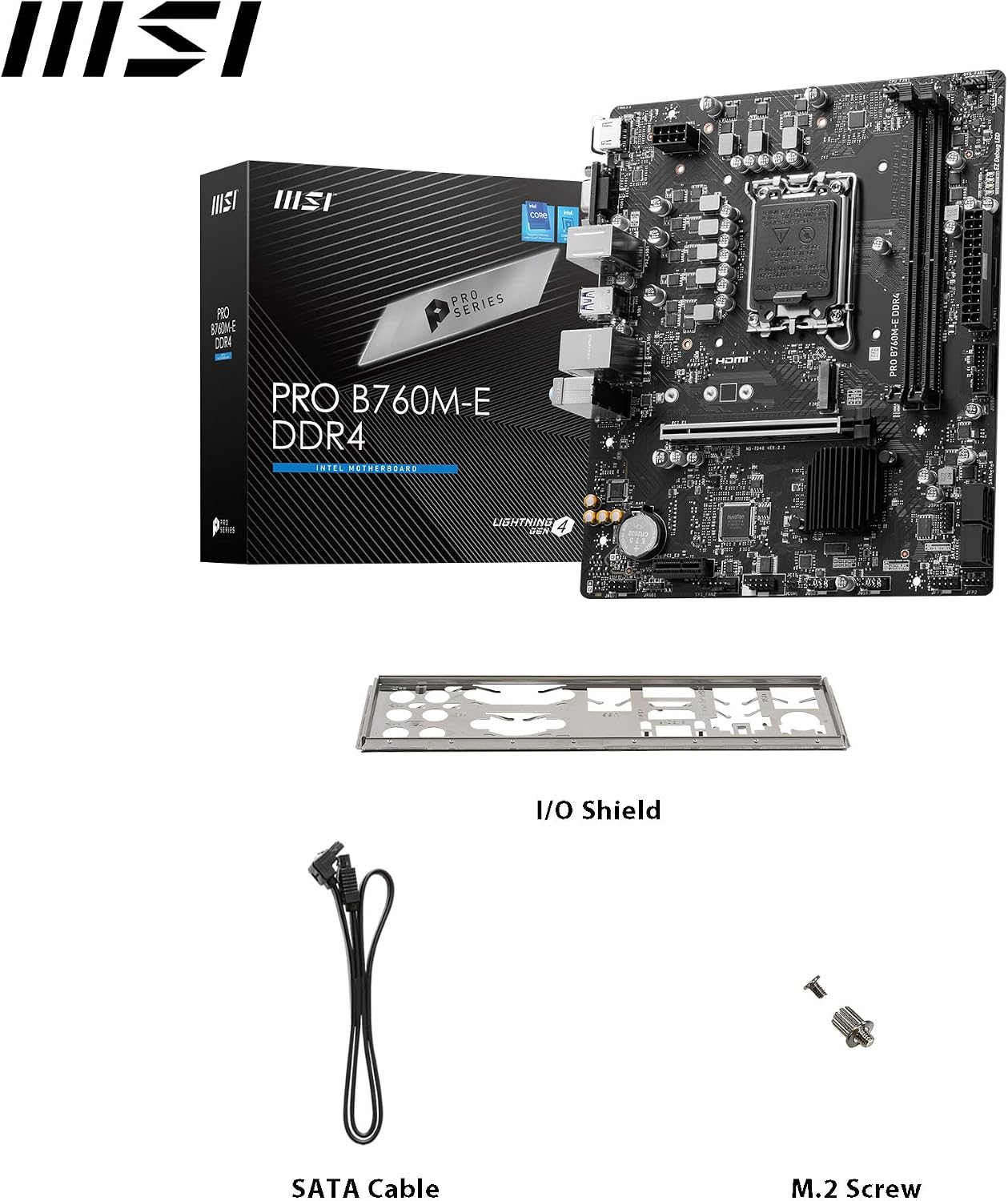

MSI PRO B760M-E DDR4 ProSeries Motherboard, Supports 12th/13th Gen Intel Processors, Micro-ATX, LGA 1700 - Black

Supports Intel Core processors of the 12th and 13th generation

The PRO B760M-E DDR4 motherboard supports Intel Core, Pentium Gold and Celeron processors of the 12th and 13th generation.

• Form factor: Micro ATX
• Base type: LGA 1700
• Chipset: Intel B760

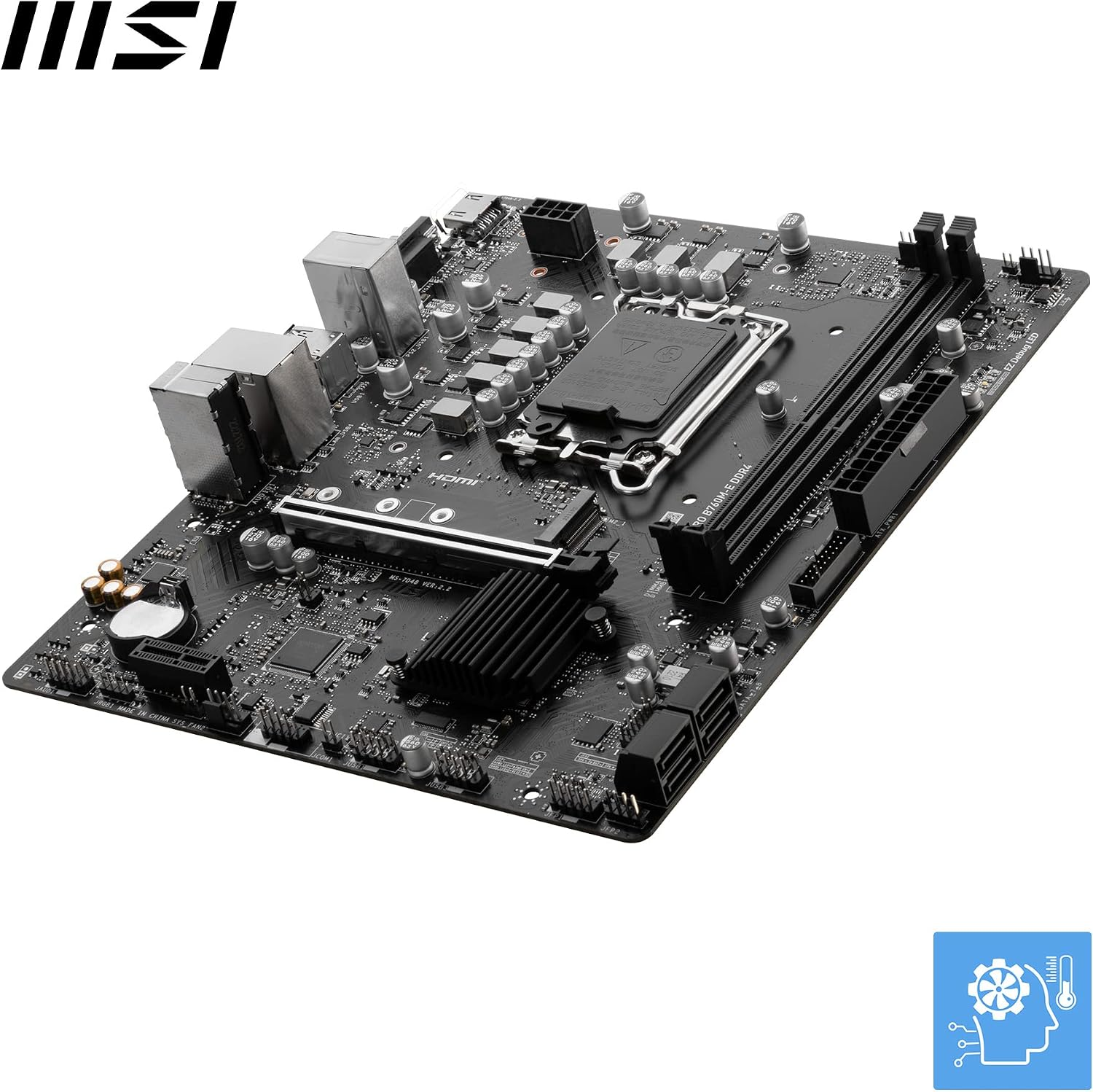

Integrated cooling

Chipset Heatsink: Provides passive cooling. Frozr AI cooling: Automatically adjusts system fan settings to CPU and GPU temperatures.

2 x DDR4 dual channel (4800 MHz OC)*

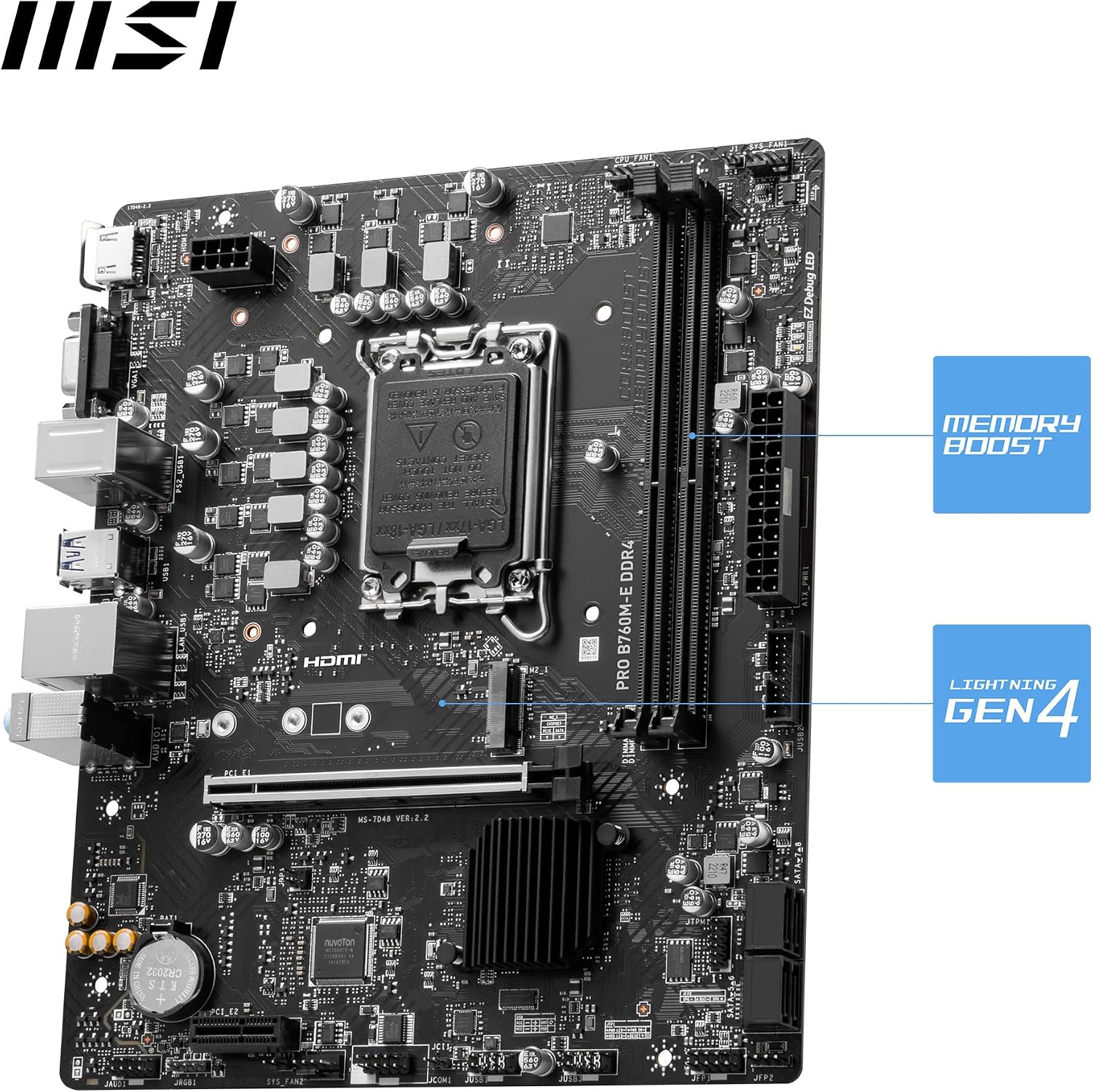

Memory Boost: A fully isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

The XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily activated with automatic power settings for optimized storage speed and stability.

*1DPC 1R Max. Overclocking frequency 4800+ MHz, supports Intel XMP.

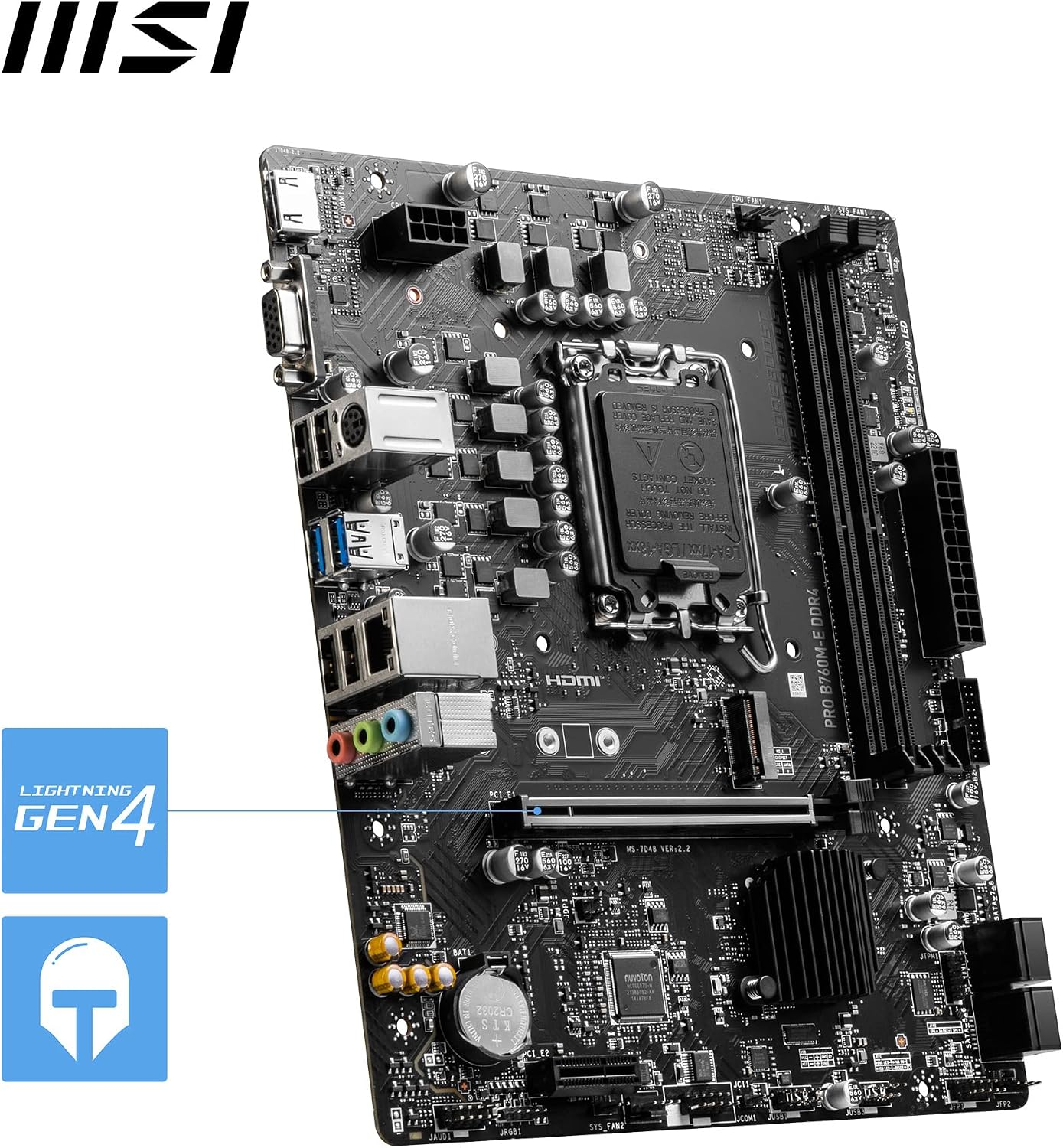

Reinforced PCIe 4.0 x16

MSI PCI Express Steel Armor slots are attached to the motherboard with additional soldering points to support the weight of heavy graphics cards. In addition, the contact point is shielded from electromagnetic interference:

• 1 x PCIe 4.0/3.0 x16 slot (with steel armor)
• 1 x PCIe 3.0 x1 slot

Gen4 M.2 connector

The PRO B760M-E DDR4 motherboard features MSIs Gen4 M.2 slot:

• 1 x Gen4 x4 64Gbps slot

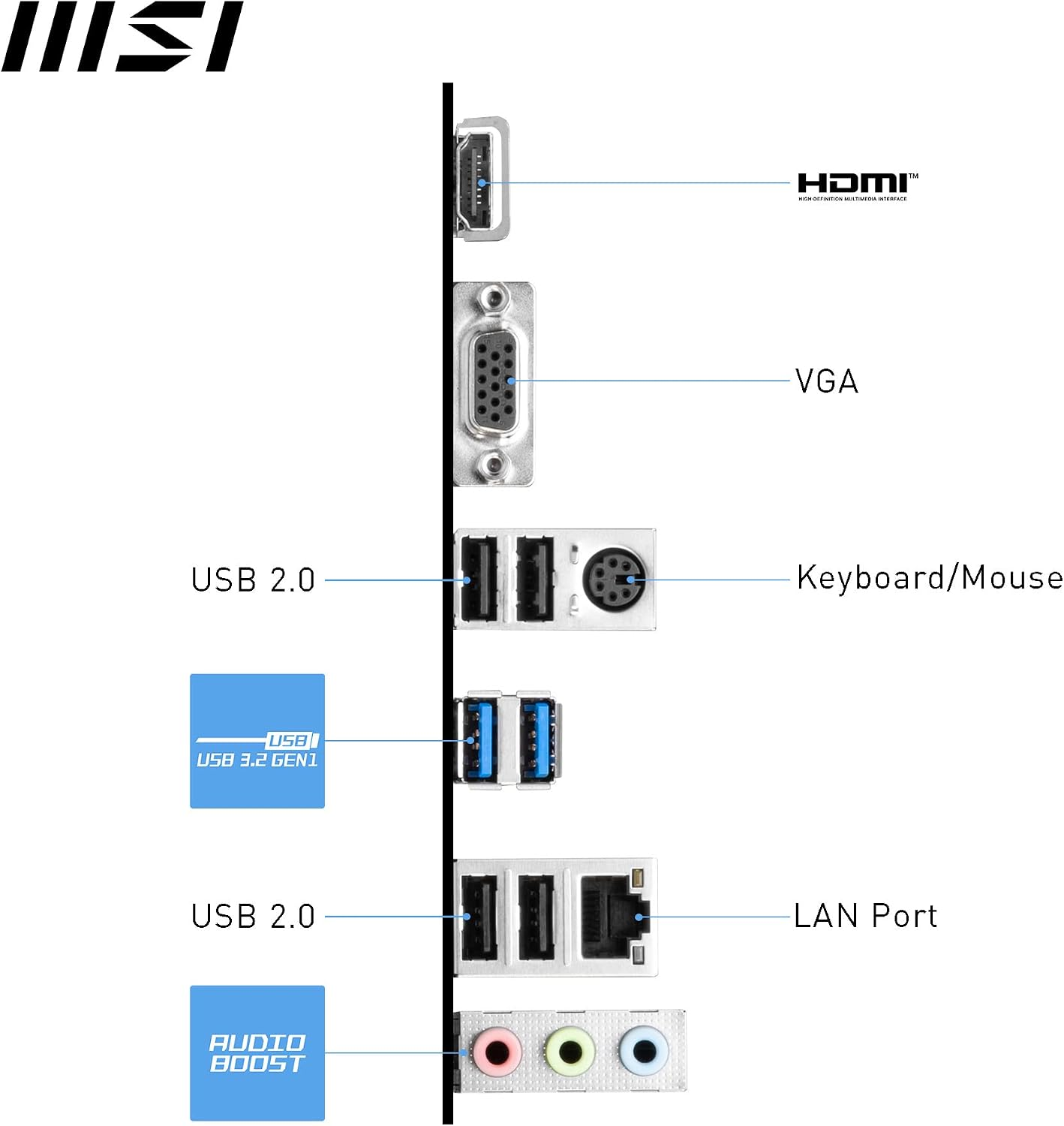

connectivity

1G LAN: A Realtek 1Gbps LAN controller ensures a first-class network experience. USB 3.2 Generation 1 Type-A: Connect to devices and transfer files with high bandwidth of up to 5 Gb/s.

HD Audio: 7.1 channel high definition audio with audio boost.

Display outputs: Includes HDMI 1.4 (4K/30Hz) and VGA (Legacy).
