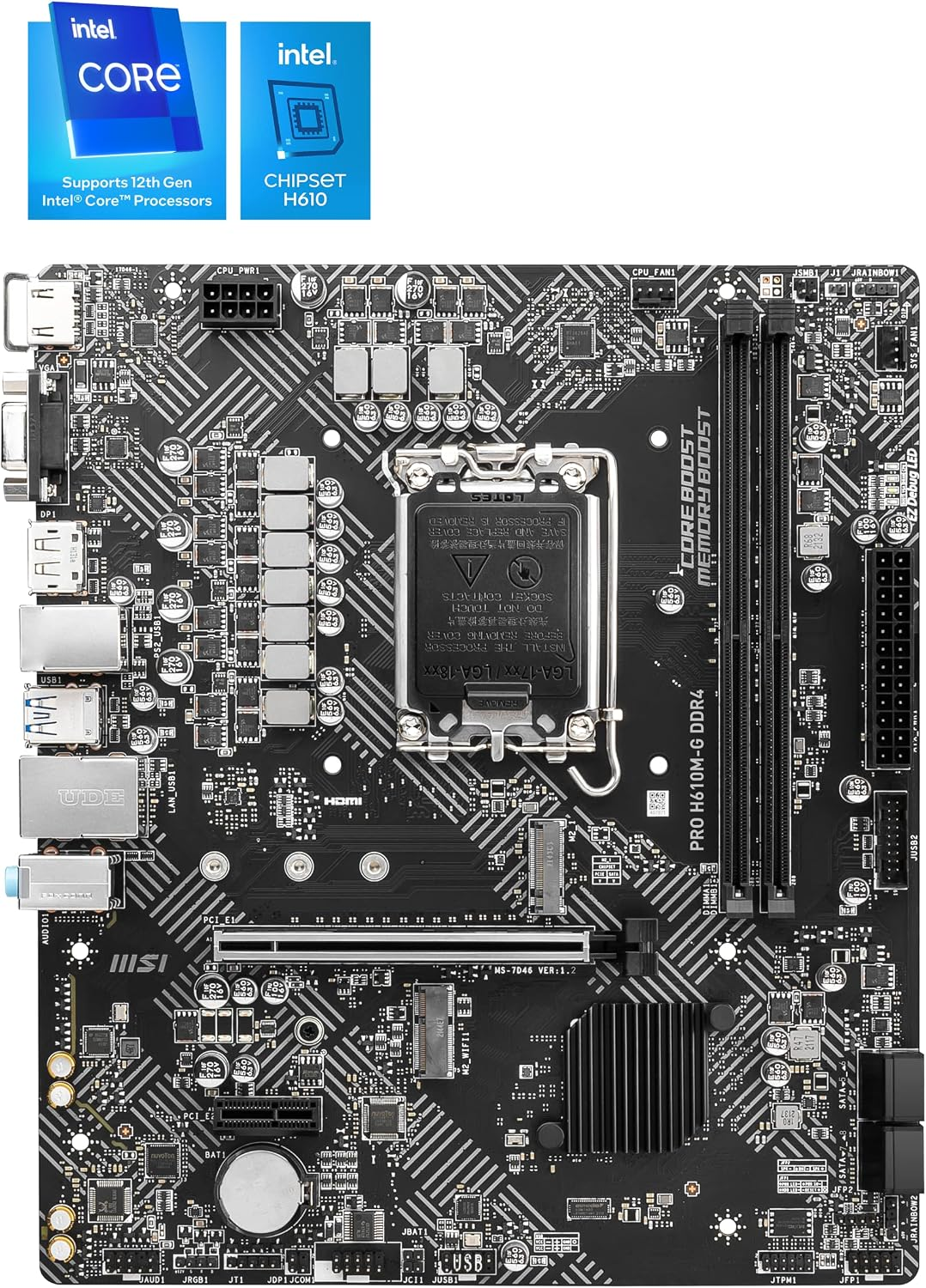

MSI Pro H610M-G DDR4 Micro-ATX Motherboard, Socket LGA 1700, H610 Chipset, 1x Intel I219V Gigabit LAN Controller, 2 DIMM Slots, M.2 Slot, PCI-E X16, SATA III, HDMI, VGA, DP

Supports Intel Core 12th Gen Processors

The PRO H610M-G DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel H610

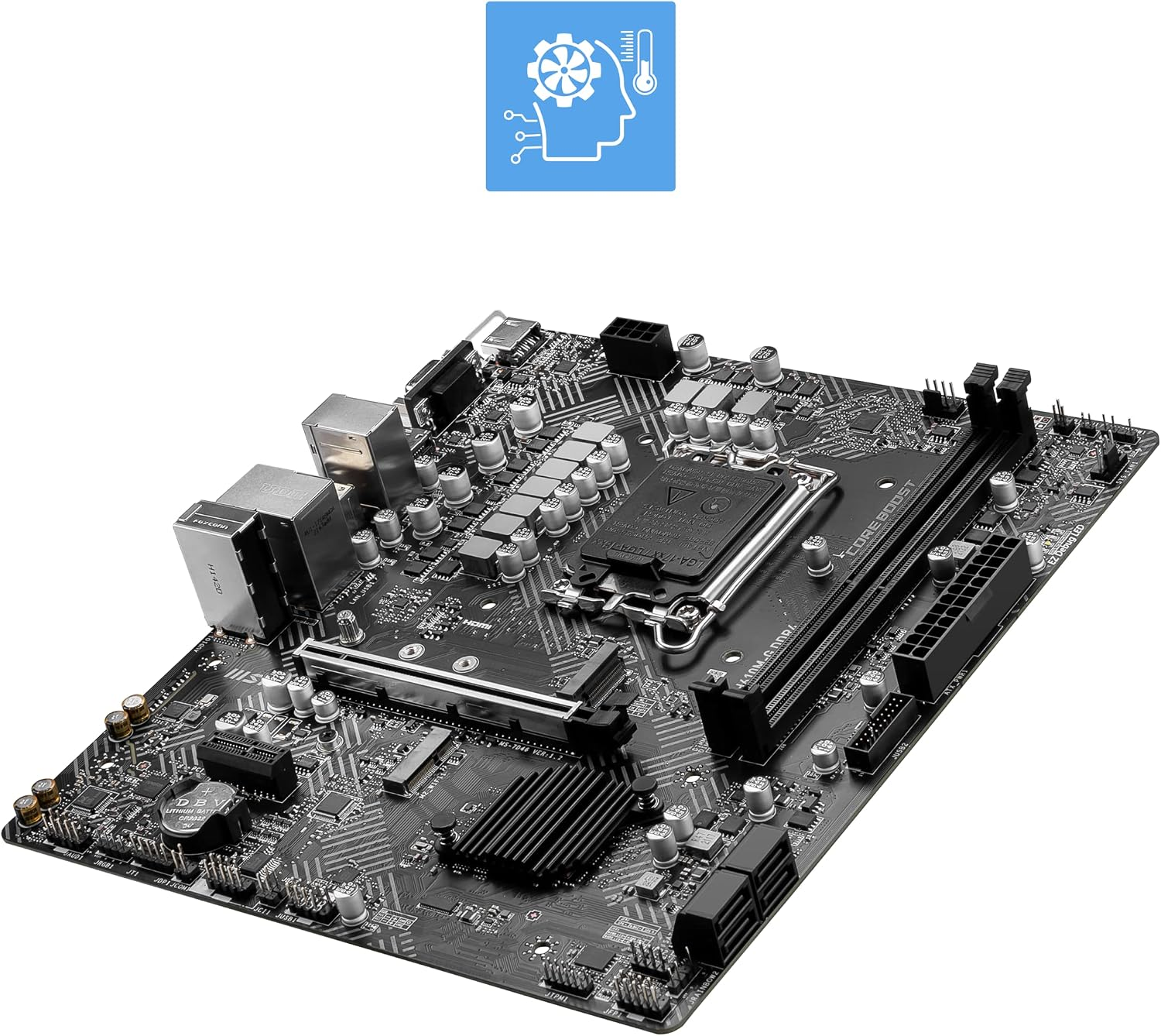

Integrated Cooling Features

Chipset Heatsink: Provides passive cooling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

2 x DDR4 Dual Channel (3200 MHz*)

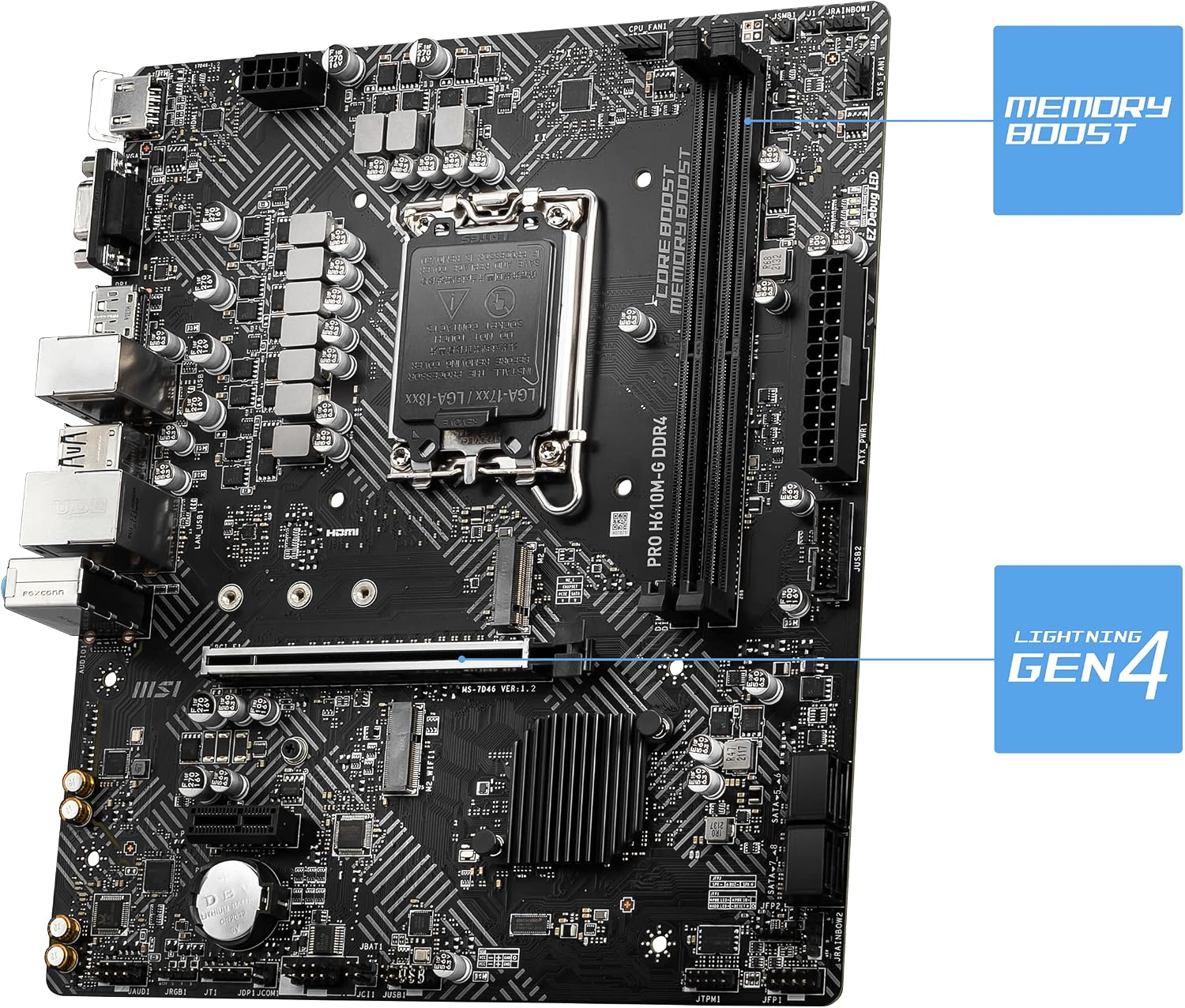

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal performance.

Core Boost: MSI's exclusive technology ensures a stable and strong current delivered to the core processor.

*1R Max. frequency 3200 MHz depending on memory module capability.

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 4.0 x16 slot (with Steel Armor)

1 x PCI-e 3.0 x1 slot

Gen3 M.2 Connector

The PRO H610M-G DDR4 motherboard features an MSI Turbo Gen3 M.2 slot:

1 x Gen3 x4 32Gb/s slot

*Supports SATA 6Gb & 2242, 2260, 2280 storage devices

Intel 1G LAN Controller

Intel 1G LAN: An Intel I219-V 1Gbps LAN controller delivers a robust network experience.

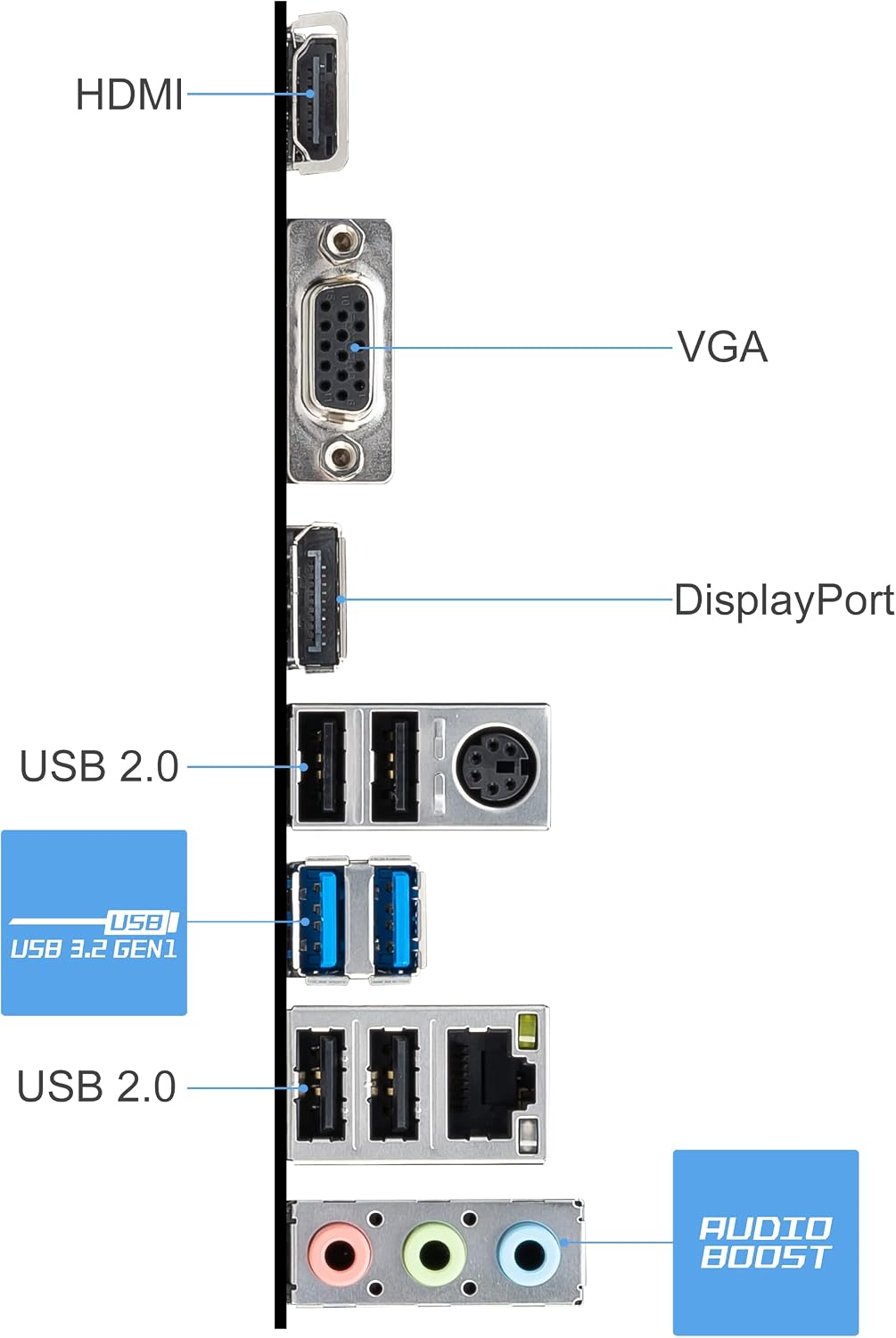

USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

4K & Legacy Video Support: Includes HDMI 2.1 (4K/60Hz), DisplayPort 1.4, and VGA ports for both digital and legacy display.
